今天給大家介紹的是BMKMANU S1000空間轉錄組數據與單細胞轉錄組數據的關聯分析。在我們的關聯分析中可以使用不同分辨率的空間數據分別與單細胞數據進行關聯分析，本期我們使用RCTD進行關聯分析。詳細分析流程如下所示：
RCTD
使用監督學習的方法，利用帶注釋的scRNA-seq數據來定義空間轉錄組學數據中預期存在的細胞類型的細胞特異性情況。
1、單細胞數據格式要求

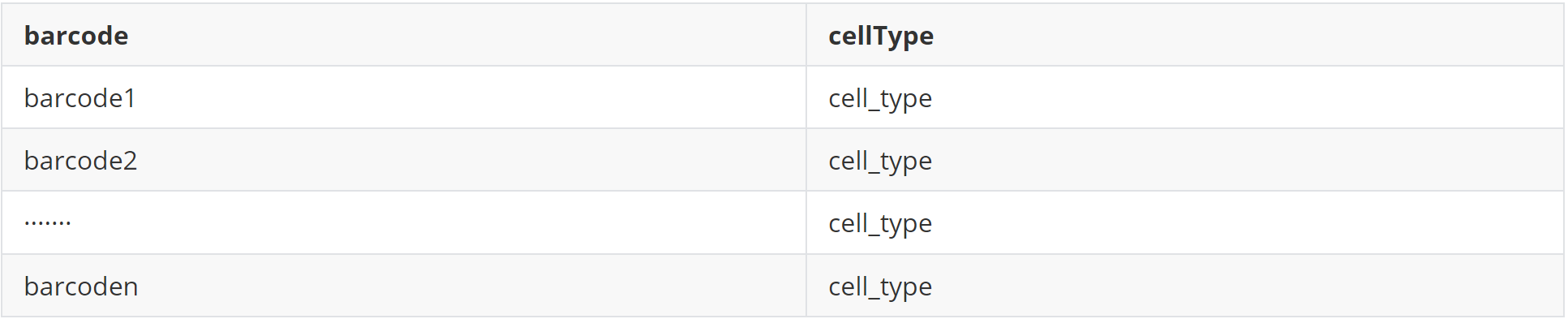

（1）data 1 細胞注釋結果（cellType）

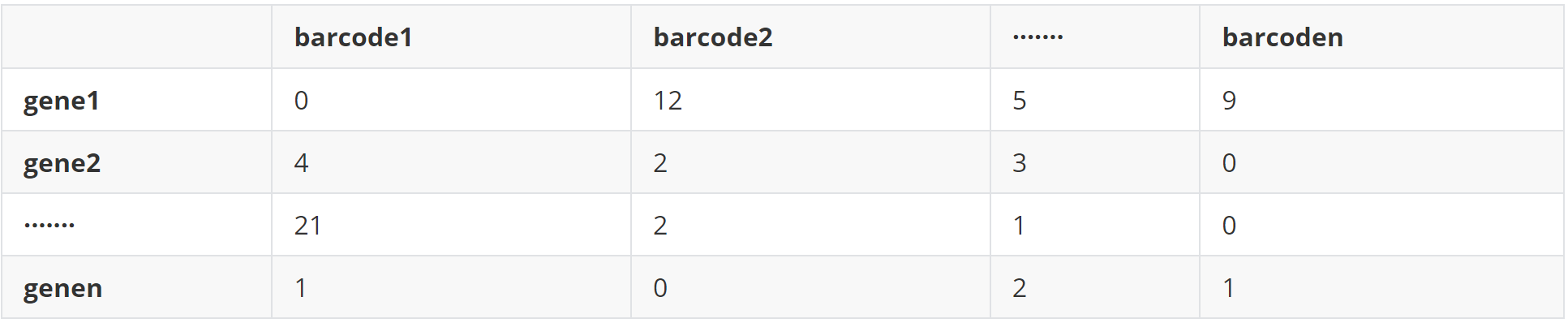

（2）data 2 基因表達矩陣（sc_counts）
2、空間數據格式要求

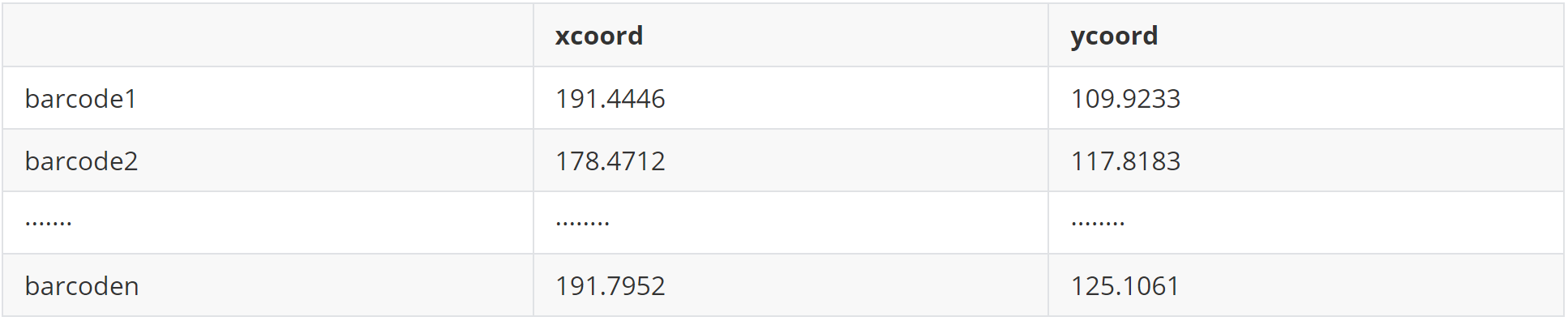

（1）data 1 空間spots位置信息

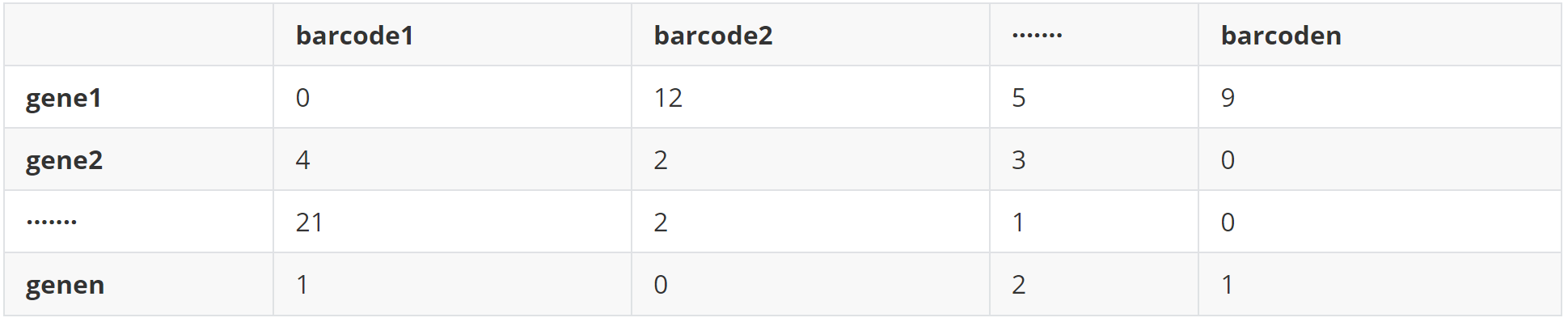

（2）data 2 基因表達矩陣（sp_counts）
#安裝spacexr包
# install.packages(“devtools”)
devtools::install_github(“dmcable/spacexr”, build_vignettes?=?FALSE)
#加載R包
library(Seurat)
library(tidyverse)
library(Matrix)
library(spacexr)
library(ggplot2)
library(ggpubr)
library(gridExtra)
library(reshape2)
library(readr)
library(Seurat)
library(config)
library(ggpubr)
library(gridExtra)
library(reshape2)
library(png)
library(patchwork)
library(SingleR)
library(celldex)
#矩陣轉化
Rcpp::sourceCpp(code=’
#include <Rcpp.h>
using namespace Rcpp;
// [[Rcpp::export]]
IntegerMatrix asMatrix(NumericVector rp,
NumericVector cp,
NumericVector z,
int nrows,
int ncols){
int k = z.size() ;
IntegerMatrix ?mat(nrows, ncols);
for (int i = 0; i < k; i++){
mat(rp[i],cp[i]) = z[i];
}
return mat;
}
‘?)
as_matrix?<-?function(mat){
row_pos?<-?mat@i
col_pos?<-?findInterval(seq(mat@x)-1,mat@p[-1])
tmp?<-?asMatrix(rp?=?row_pos, cp?=?col_pos, z?=?mat@x,
nrows?=??mat@Dim[1], ncols?=?mat@Dim[2])
row.names(tmp) <-?mat@Dimnames[[1]]
colnames(tmp) <-?mat@Dimnames[[2]]
return(tmp)
}
#讀取單細胞數據
expr?<-?Read10X(‘/xxx/04.QC/filtered_feature_bc_matrix/’, cell.column?=?1)
sc_data?<-?CreateSeuratObject(counts?=?expr,assay?=?“RNA”,min.cells=5,min.features=100)
#counts & nUMI
sc_counts?<-?as_matrix(sc_data[[‘RNA’]]@counts)
sc_nUMI?=?colSums(sc_counts)
#注釋
##方法一：SingleR 注釋
load(‘/share/nas1/guochao/database/celldex/MouseRNAseqData.Rdata’)
mouseRNA?<-?ref
sce_for_SingleR<-GetAssayData(sc_data,slot=”data”)
pred.mouseRNA?<-?SingleR(test=sce_for_SingleR,ref=mouseRNA,labels=mouseRNA$label.fine,assay.type.test=”logcounts”,assay.type.ref?=”logcounts”)
pred.mouseRNA$labels<-as.factor(pred.mouseRNA$labels)
cellType=data.frame(barcode=sc_data@assays$RNA@counts@Dimnames[2], celltype=pred.mouseRNA$labels)
names(cellType) =?c(‘barcode’, ‘cell_type’)
cell_types?=?cellType$cell_type; names(cell_types) <-?cellType$barcode?# create cell_types named list
cell_types?=?as.factor(cell_types) # convert to factor data type
##方法二：手動注釋
sc_data?=?NormalizeData(sc_data, normalization.method?=?‘LogNormalize’, scale.factor?=?10000)
sc_data?=?FindVariableFeatures(sc_data, selection.method?=?‘vst’, nfeatures?=?2000)
sc_data?=?ScaleData(sc_data)
sc_data?=?RunPCA(sc_data, features?=?VariableFeatures(object?=?sc_data))
sc_data?=?FindNeighbors(sc_data, dims?=?1:15)
sc_data?=?FindClusters(sc_data, resolution?=?0.25)
markers?=?FindAllMarkers(sc_data, only.pos?=?TRUE, min.pct?=?0.25, logfc.threshold?=?0.25)
top10?=?markers?%>%?group_by(cluster) %>%?top_n(n?=?5, wt?=?avg_log2FC)
my_df?=?sc_data@meta.data?%>%?as.data.frame() %>%
select(seurat_clusters) %>%
rownames_to_column(var?=?‘barcode’) %>%
rename(cluster?=?seurat_clusters)
cellType?=?my_df?%>%?mutate(cell_type?=?case_when( cluster?==?‘0’?~?‘Allantois cell’,
cluster?==?‘1’?~?‘Bergmann glial cell’,
cluster?==?‘2’?~?‘Neuroblast’,
cluster?==?‘3’?~?‘Neuroendocrine cell’,
cluster?==?‘4’?~?‘Fibroblast’,
cluster?==?‘5’?~?‘Type I spiral ganglion neuron’,
cluster?==?‘6’?~?‘Erythroid cell’,
cluster?==?‘7’?~?‘Type II spiral ganglion neuron’,
cluster?==?‘8’?~?‘Epithelial cell’,
cluster?==?‘9’?~?‘Cardiac progenitor cell’,
cluster?==?’10’?~?‘Oligodendrocyte precursor cell’,
cluster?==?’11’?~?‘Endothelial cell’,
cluster?==?’12’?~?‘Megakaryocyte’,
cluster?==?’13’?~?‘Hepatocyte’,
cluster?==?’14’?~?‘Ventricular cardiomyocyte’))
cell_types?=?cellType$cell_type; names(cell_types) <-?cellType$barcode?# create cell_types named list
cell_types?=?as.factor(cell_types) # convert to factor data type
#構建參考集
reference?=?Reference(sc_counts, cell_types, sc_nUMI)
#讀取空間數據，這里選擇的是level 13的數據
#位置信息
coords?=?read.table(gzfile(‘/xxx/05.AllheStat/BSTViewer_project/subdata/L13_heAuto/barcodes_pos.tsv.gz’), ???header?=?F) %>%?dplyr::rename(barcodes?=?V1, xcoord?=?V2, ycoord?=?V3)
rownames(coords) <-?coords$barcodes; coords$barcodes?<-?NULL
#表達量矩陣
expr?<-?Read10X(‘/xxx/05.AllheStat/BSTViewer_project/subdata/L13_heAuto/’, cell.column?=?1)
sp_data?<-?CreateSeuratObject(counts?=?expr,assay?=?“Spatial”)
sp_counts?<-?as_matrix(sp_data[[‘Spatial’]]@counts)
#nUMI
sp_nUMI?<-?colSums(sp_counts)
#構建空間實驗集
puck?<-?SpatialRNA(coords, sp_counts, sp_nUMI)
#聯合分析
myRCTD?<-?create.RCTD(puck, reference, max_cores?=?8)
myRCTD?<-?run.RCTD(myRCTD, doublet_mode?=?‘doublet’) #run.RCTD
#查找marker基因
get_marker_data?<-?function(cell_type_names, cell_type_means, gene_list) {
marker_means?=?cell_type_means[gene_list,]
marker_norm?=?marker_means?/?rowSums(marker_means)
marker_data?=?as.data.frame(cell_type_names[max.col(marker_means)])
marker_data$max_epr?<-?apply(cell_type_means[gene_list,],1,max)
colnames(marker_data) =?c(“cell_type”,’max_epr’)
rownames(marker_data) =?gene_list
marker_data$log_fc?<-?0
epsilon?<-?1e-9
for(cell_type?in?unique(marker_data$cell_type)) {
cur_genes?<-?gene_list[marker_data$cell_type?==?cell_type]
other_mean?=?rowMeans(cell_type_means[cur_genes,cell_type_names?!=?cell_type])
marker_data$log_fc[marker_data$cell_type?==?cell_type] <-?log(epsilon?+?cell_type_means[cur_genes,cell_type]) –?log(epsilon?+?other_mean)
}
return(marker_data)
}
cell_type_info_restr?=?myRCTD@cell_type_info$info
de_genes?<-?get_de_genes(cell_type_info_restr, puck, fc_thresh?=?3, expr_thresh?=?.0001, MIN_OBS?=?3)
marker_data_de?=?get_marker_data(cell_type_info_restr[[2]], cell_type_info_restr[[1]], de_genes)
saveRDS(marker_data_de,’/share/nas1/guochao/Test/221107marker_data_de_standard.RDS’)
write.table(marker_data_de, file?=?‘/share/nas1/guochao/Test/221107marker_data_de_standard.tsv’, sep?=?‘\t’,quote?=?F, row.names?=?T)
#構建繪圖數據
results?<-?myRCTD@results
results_df?<-?results$results_df
barcodes?=?rownames(results_df[results_df$spot_class?!=?“reject”?&?puck@nUMI?>=?1,])
my_table?=?puck@coords[barcodes,]
my_table$class?=?results_df[barcodes,]$first_type
#繪圖
cal_zoom_rate?<-?function(width, height){
std_width?=?1000
std_height?=?std_width?/?(46?*?31) *?(46?*?36?*?sqrt(3) /?2.0)
if?(std_width?/?std_height?>?width?/?height){
scale?=?width?/?std_width
}
else{
scale?=?height?/?std_height
}
return(scale)
}
png?<-?readPNG(‘/share/nas1/dengdj/testing/Barcode_YF/20220923-YF-N1295-1-2/analysis/XSPT-T/05.AllheStat/allhe/he_roi_small.png’)
zoom_scale?=?cal_zoom_rate(dim(png)[2], dim(png)[1])
my_table?=?my_table?%>%?mutate(across(c(x,y), ~.x*zoom_scale))
col?=?c(“#F56867″,”#FEB915″,”#C798EE”,”#59BE86″,”#7495D3″,”#D1D1D1″,”#6D1A9C”,”#15821E”,”#3A84E6″,”#997273″,”#787878″,”#DB4C6C”,”#9E7A7A”,”#554236″,”#AF5F3C”,”#93796C”,”#F9BD3F”,”#DAB370″)
p?=?ggplot(my_table, aes(x?=?x, y?=?dim(png)[1] –?y))+
background_image(png)+
geom_point(shape?=?16, size?=?1.8, aes(color?=?class))+
coord_cartesian(xlim?=?c(0, dim(png)[2]), y?=?c(0, dim(png)[1]), expand?=?FALSE)+
scale_color_manual(values?=?col)+
theme(axis.title.x=element_blank(),axis.text.x=element_blank(),axis.ticks.x=element_blank(), axis.title.y=element_blank(),axis.text.y=element_blank(),axis.ticks.y=element_blank())+
guides(color?=?guide_legend(override.aes?=?list(size?=?2.5, alphe?=?0.1)))
ggsave(p, file?=?‘/share/nas1/guochao/Test/temp/221107_all.png’, width=10, height=7, dpi?=?300)
ggsave(p, file?=?‘/share/nas1/guochao/Test/temp/221107_all.pdf’, width=10, height=7)
