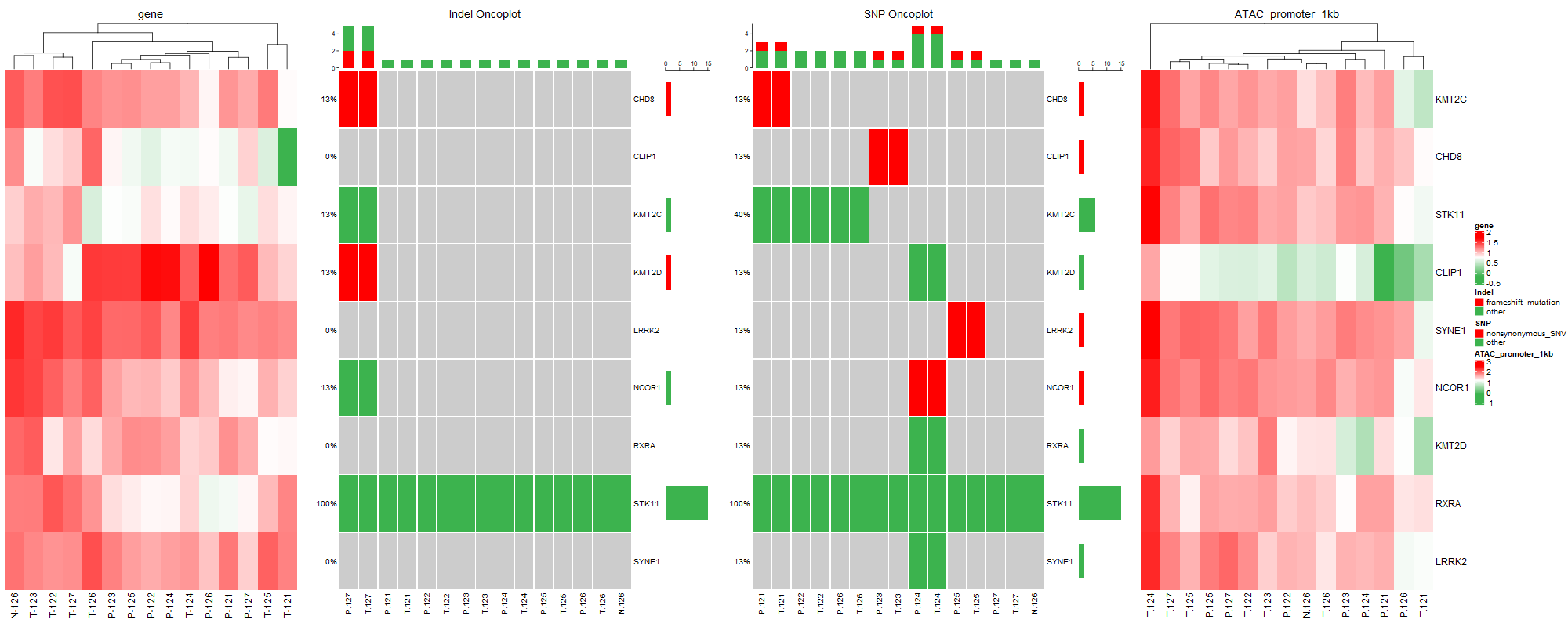

將多圖組合到一起；用到R包ComplexHeatmap；
此圖中包含兩種基本圖，一種是基因瀑布圖，另外一種是熱圖。
腳本如下：
setwd("F:/work/個性化/基因瀑布圖")
test<-read.delim("test.txt",?header=TRUE?,check.names?=?F)
#此處讀取的是四個文件的基因交集，只有一列基因，這樣最后呈現的圖的樣本和基因個數一樣。
library(ComplexHeatmap)
png("test.png",type="cairo",width=2000,height=800)
color.1?<-?colorRampPalette(rev(c("red",?"white",?"#3CB34E")))(100)
data<-?read.delim("mRNA_fpkm.list",?row.names?=?1,?header=TRUE?,check.names?=?F)
row.names(data)<-data$Symbol
data<-data[which(rownames(data)%in%test$gene_symbol),]
data=?data[,?-1]
data?<-?log10(data+0.000001)
data<-as.matrix(data)
ht1<-Heatmap(data,col=color.1,cluster_columns??=?T,cluster_rows?=?F,name="gene",column_title?=?"gene",show_row_names?=?T,show_column_names?=?T)
#此處既顯示樣品名又顯示基因名
col<-c("frameshift_mutation"="red","other"="#3CB34E","nonsynonymous_SNV"="red")
alter_fun<-list(
??background=function(x,y,w,h){
????grid.rect(x,y,w-unit(0.5,"mm"),h-unit(0.5,"mm"),
??????????????gp=gpar(fill="#cccccc",col=NA))
??},
??frameshift_mutation=function(x,y,w,h){
????grid.rect(x,y,w-unit(0.5,"mm"),h-unit(0.5,"mm"),
??????????????gp=gpar(fill=col["frameshift_mutation"],col=NA))
??},
??other=function(x,y,w,h){
????grid.rect(x,y,w-unit(0.5,"mm"),h-unit(0.5,"mm"),
??????????????gp=gpar(fill=col["other"],col=NA))
??},
??nonsynonymous_SNV=function(x,y,w,h){
????grid.rect(x,y,w-unit(0.5,"mm"),h-unit(0.5,"mm"),
??????????????gp=gpar(fill=col["nonsynonymous_SNV"],col=NA))
??}
)
library(do)
mat?<-read.table("indel_keygene.xls",head=T,sep="\t",stringsAsFactors?=?FALSE)

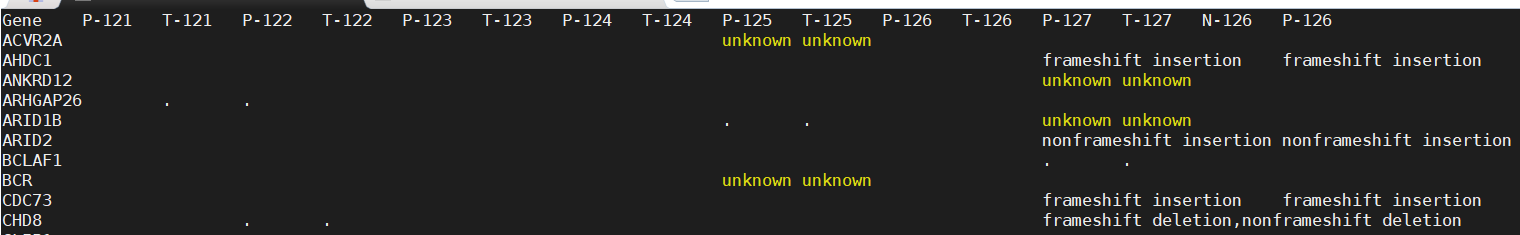

#此處導入處理后的indel文件，格式如圖：
rownames(mat)<-mat$Gene
mat<-mat[which(rownames(mat)%in%test$gene_symbol),]
mat<-mat[,-1]
mat[is.na(mat)]<-""
mat<-Replace(mat,from?=?"^.$",to?=?"?",pattern?=?"")
#此處Replace是R包do中的函數，將文件中的內容替換成自己所需要的內容
mat<-Replace(mat,from?=?"^,.",to?=?"?",pattern?=?"")
mat<-Replace(mat,from?=?",.$",to?=?"?",pattern?=?"")
mat<-Replace(mat,from?=?"^.,",to?=?"?",pattern?=?"")
mat<-Replace(mat,from?=?"nonframeshift?deletion,frameshift?deletion",to?=?"frameshift_mutation",pattern?=?"")
mat<-Replace(mat,from?=?"frameshift?deletion,nonframeshift?deletion",to?=?"frameshift_mutation",pattern?=?"")
mat<-Replace(mat,from?=?"nonframeshift?deletion",to?=?"other",pattern?=?"")
mat<-Replace(mat,from?=?"nonframeshift?insertion",to?=?"other",pattern?=?"")
mat<-Replace(mat,from?=?"frameshift?deletion",to?=?"frameshift_mutation",pattern?=?"")
mat<-Replace(mat,from?=?"frameshift?insertion",to?=?"frameshift_mutation",pattern?=?"")
mat<-Replace(mat,from?=?"unknown",to?=?"other",pattern?=?"")
#oncoPrint(mat)
#指定變異類型的標簽，和數據中的類型對應
heatmap_legend_param<-list(title="Indel",at=c("frameshift_mutation",?"other"),labels=c("frameshift_mutation",?"other"))
#設定標題
column_title<-"Indel?Oncoplot"
ht2<-oncoPrint(mat,alter_fun?=?alter_fun,col=col,column_title=column_title,heatmap_legend_param?=?heatmap_legend_param,remove_empty_columns?=?F,remove_empty_rows?=?F,show_column_names?=?T,show_row_names?=T)
mat?<-read.table("keygene.SNP.xls",head=T,sep="\t",stringsAsFactors?=?FALSE)

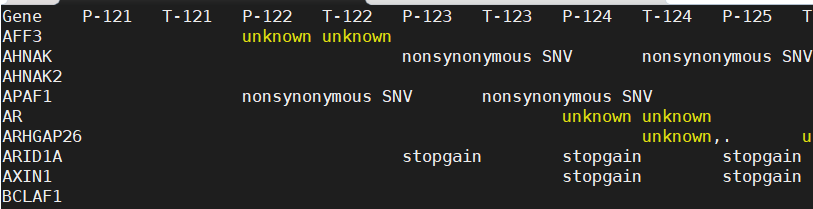

#導入SNP文件，格式如圖
rownames(mat)<-mat$Gene
mat<-mat[which(rownames(mat)%in%test$gene_symbol),]
mat<-mat[,-1]
mat[is.na(mat)]<-""
#mat<-str_replace("nonframeshift?insertion","other","")
mat<-Replace(mat,from?=?"^.$",to?=?"",pattern?=?"")
mat<-Replace(mat,from?=?"^,.",to?=?"",pattern?=?"")
mat<-Replace(mat,from?=?",.$",to?=?"",pattern?=?"")
mat<-Replace(mat,from?=?"^.,",to?=?"",pattern?=?"")
mat<-Replace(mat,from?=?"stopgain",to?=?"other",pattern?=?"")
mat<-Replace(mat,from?=?"stoploss",to?=?"other",pattern?=?"")
mat<-Replace(mat,from?=?"unknown",to?=?"other",pattern?=?"")
mat<-Replace(mat,from?=?"^synonymous?SNV$",to?=?"other",pattern?=?"")
mat<-Replace(mat,from?=?"^nonsynonymous?SNV$",to?=?"nonsynonymous_SNV",pattern?=?"")
mat<-Replace(mat,from?=?"synonymous?SNV,nonsynonymous?SNV",to?=?"nonsynonymous_SNV",pattern?=?"")
mat<-Replace(mat,from?=?"nonsynonymous?SNV,synonymous?SNV",to?=?"nonsynonymous_SNV",pattern?=?"")
#oncoPrint(mat)
mat<-as.matrix(mat)
#指定變異類型的標簽，和數據中的類型對應
heatmap_legend_param<-list(title="SNP",at=c("nonsynonymous_SNV",?"other"),labels=c("nonsynonymous_SNV",?"other"))
#設定標題
column_title<-"SNP?Oncoplot"
ht3<-oncoPrint(mat,alter_fun?=?alter_fun,col=col,column_title=column_title,heatmap_legend_param?=?heatmap_legend_param,remove_empty_columns?=?F,remove_empty_rows?=?F,show_column_names?=?T,show_row_names?=T)
data<-?read.delim("ATAC_promoter_1kb.xls",?row.names?=?1,?header=TRUE?,check.names?=?F)
row.names(data)<-data$gene_symbol
data<-data[which(rownames(data)%in%test$gene_symbol),]
data=?data[,?5:19]
data[is.na(data)]<-0
data<-data[which(rowSums(data)>0),]
data?<-?log10(data+0.000001)
data<-as.matrix(data)
library(ComplexHeatmap)
color.1?<-?colorRampPalette(rev(c("red",?"white",?"#3CB34E")))(100)
ht4<-Heatmap(data,col=color.1,cluster_columns??=?T,cluster_rows?=?F,name?=?"ATAC_promoter_1kb",column_title?=?"ATAC_promoter_1kb",show_row_names?=?T,show_column_names?=?T)
draw(ht1+ht2+ht3+ht4,gap=unit(0.8,"cm"))
dev.off()
其中需要注意的是當有多個基因瀑布圖時，alter_fun和col需在同一條命令中設置。通過以上一頓操作，快速將基因瀑布圖和熱圖組合在一起，既展示了基因的結構變異、開放狀態、基因表達，呈現多組學的角度探討疾病發生發展。這不就完成了Fig1還升華了Fig1的深度。
